Kcup Coffee Capsule Filling Sealing Machine Linear Shape
Two Lanes Kcup Coffee Capsule Filling Machine
Description of the biodegradable coffee capsules filling sealing machine
This K-cup Coffee Capsule Filling Sealing Machine(Model: SKP-2) of Sunyi Machinery is fully automatic and muti-functional capsules filling sealing packaging machinery.
With good appearance, stable performance, high filling speed and filling accuracy, the kcup coffee capsule filling sealing machine has won a variety of customers at home and abroad.
This kcup coffee capsule filling sealing machine main body frame and foodstuff contact part adopts food grade stainless steel. The design will meet the GMP/FDA requirements. This machine can achieve 80-100cups/min. Greatly sava human labor. And we also have lower speed machine models (SKP-1, SKP-1N) and bigger capacity machine models (SKP-4, SKP-6) for your options.
If any further questions, please don’t hesitate to contact us.
Characers of the biodegradable coffee capsules filling sealing machine
| Filling weight | 0-12g coffee powder/milk powder |
| Filling accuracy | ±0.15g |
| Hopper capacity | 10-24L / 110L |
| Power supply | AC 110V 220V 380V 7.5KW |
| Air supply | 6 Bar |
| Control system | PLC remote control system |
| Max speed | 100 capsules per minute |
| Dimension | 3420(L)x770(W)x2688(H)mm |
| Capsule material | PP, Aluminum, Biodegradable |
| Shipping port | Shanghai |
| Quote Valid time | 50 days |
| Delivery time | within 50 working days |
| Warranty | one year |
| Remained oxygen content | ＜1% |
Procedures of the biodegradable coffee capsules filling sealing machine

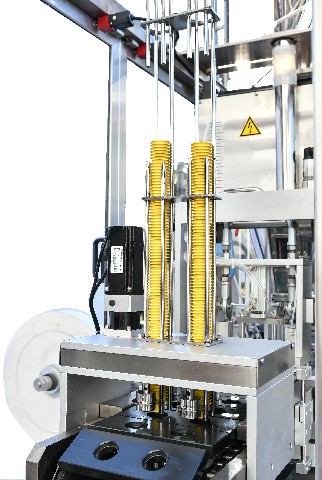

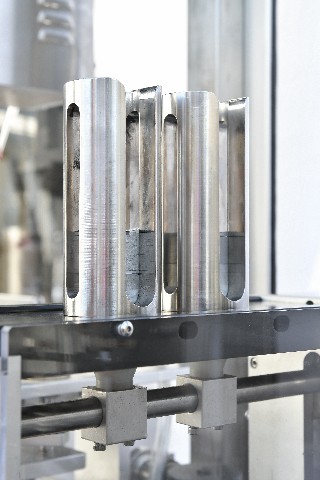

1. capsules loading
The elevator will convey empty coffee capsules to automatic sorter machine. the elevator has a hopper, it can load 2000-3000 pieces capsules, shortening the time that people add empty capsules into the machine by hand. Every 1 hour you need to add capsules. And when lacking capsules, the sorter will send capsules automatically.

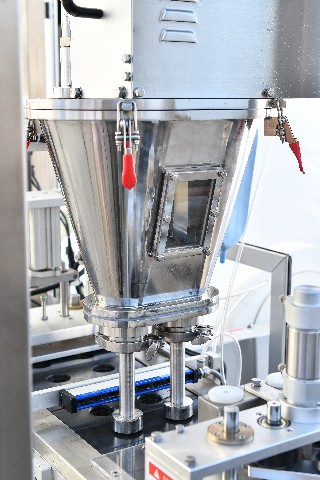

2. auger filling
Auger filler is driven by Servo motor.
Constant speed mixing device ensures that the density of coffee powder is always uniform and there is no cavity in the hopper.
Visualized hopper can be pulled out and moved for easy cleaning. Powder level detection and vacuum feeder convey powder automatically.
Special filling outlet structure ensures stable weight and no powder spreading.

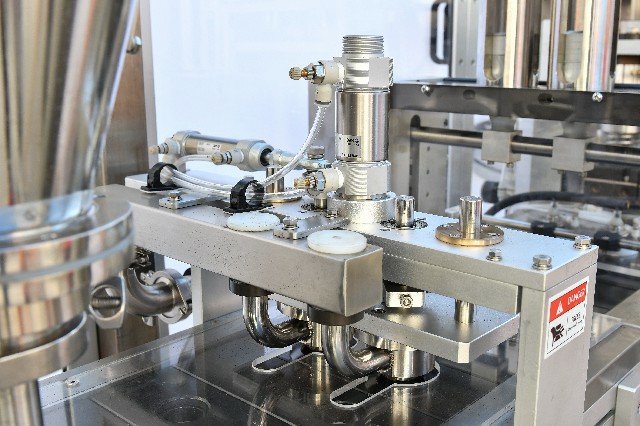

3. tamp and clean
Powerful vacuum clean-up device for top edge of capsules/cups to get a good sealing effect.
Pressure adjustable tamping compacts the powder strongly, when brewing coffee. It will get a good espresso and extrac more crema.

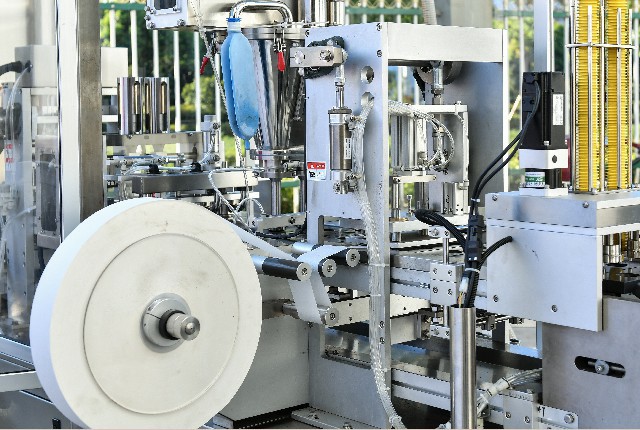

4. lids station
(option 1) Using precut films
(option 2) Using roll films
5. heat sealing
To do the second sealing. Avoid the failure of the former step to achieve a goog sealing effect.
6. output capsules
Before outputing the capsules, there will be a weight checking machine. You can set the qualified weight of the capsules. Once it picks the unqualified ones, it will reject it for the second use. The qualified ones will be picked out to the conveyor belt automatically.
Capsules of the biodegradable coffee capsules filling sealing machine
| Material | Filling weight | Inner filter | Diameter |
| PP with EVOH | 0-10g
0-11g | paper filter | 51mm |
| snythetic filter |
The nespresso, lavazza, dolce gusto capsules are all suitable for the machine. you can do more than one kind of capsules in one machine just to change the mold.
After-sale services of the biodegradable coffee capsules filling sealing machine
1. supply training and test in our factory
2. give operation manual installation and operation video to client;
3. do after-sale service overseas ( customers shoulf pay for the daily wage $100
4. 24 hours online support.
Packaging and transportation of the biodegradable coffee capsules filling sealing machine
1.clean machine and Vegetable oil protect machine not rust
2.Stretch film packaging
3.Wooden tray
4.wodden case
